SMD四極點濾波器
典型產品的主要技術指標（一）
|
型號 |
中心頻率MHz |
極點 |
通帶帶寬 KHz/dB |
阻帶帶寬 KHz/dB |
波動 dB |
插入損耗 dB |
阻抗 KΩ//Pf |
外形尺寸 |
|
YXD21M7.5A |
21.40 |
2 |
±3.75/3 |
±18.0/20 |
1.0 |
2.0 |
0.85//6.0 |
7x5x1.4 |
|
YXD21M15A |
21.40 |
2 |
±7.50/3 |
±25.0/18 |
1.0 |
2.0 |
1.5//2.5 |
7x5x1.4 |
|
YXD21M20A |
21.40 |
2 |
±10.00/3 |
±30.0/10 |
1.0 |
2.0 |
1.8//1.0 |
7x5x1.4 |
|
YXD21M30A |
21.40 |
2 |
±15.00/3 |
±45.0/15 |
1.0 |
2.0 |
2.0//1.5 |
7x5x1.4 |
|
YXD29M20A |
29.00 |
2 |
±10.00/3 |
±25.0/10 |
1.0 |
2.0 |
1.8//1.5 |
7x5x1.4 |
|
YXD45M7.5A |
45.00 |
2 |
±3.75/3 |
±60.0/15 |
1.0 |
2.0 |
0.65//3.5 |
7x5x1.4 |
|
YXD45M30A |
45.00 |
2 |
±15.00/3 |
±60.0/15 |
1.0 |
2.0 |
1.2//-3.0 |
7x5x1.4 |
|
YXD49M20A |
49.00 |
2 |
±15.00/3 |
±40.0/30 |
1.0 |
2.5 |
1.1//0 |
7x5x1.4 |
|
YXD77M15A |
77.55（3） |
2 |
±7.50/3 |
±28.0/35 |
1.0 |
3.0 |
1.5//-1.0 |
7x5x1.4 |
|
YXD100M20A |
100.00（3） |
2 |
±10.0/3 |
±25.0/18 |
1.0 |
2.0 |
1.5//-1.5 |
7x5x1.4 |
|
YXD105M14A |
105.00（3） |
2 |
±7.0/3 |
±20.0/20 |
1.0 |
6.0 |
0.95//-1.4 |
7x5x1.4 |
|
YXD109M30A |
109.65（3） |
2 |
±15.0/3 |
±60.0/22 |
0.5 |
2.5 |
2.0//-1.3 |
7x5x1.4 |
|
YXD128M30A |
128.55（3） |
2 |
±15.0/3 |
±53.0/20 |
1.3 |
2.5 |
0.95//-1.6 |
7x5x1.4 |

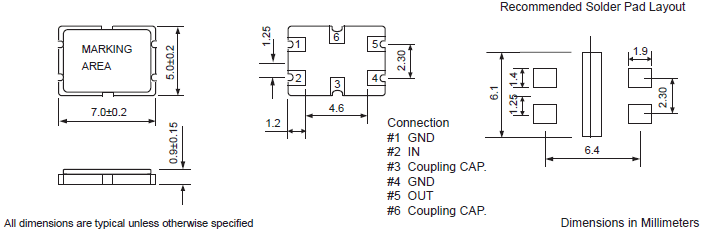

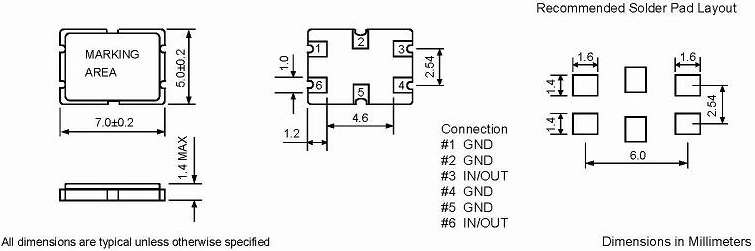

外形尺寸圖
典型產品的主要技術指標（二）
|
型號 |
中心頻率MHz |
極點 |
通帶帶寬 KHz/dB |
阻帶帶寬 KHz/dB |
波動 dB |
插入損耗 dB |
阻抗 KΩ//Pf |
外形尺寸 |
|
YXD44M11B |
44.25 |
4 |
±5.50/3 |
±20.0/35 |
1.5 |
3.0 |
0.6//2.5 |
7x5x0.9 |
|
YXD44M13B |
44.25 |
4 |
±6.50/3 |
±12.5/22 |
1.0 |
3.0 |
0.43//6.0 |
7x5x0.9 |
|
YXD45M7.5B |
45.00 |
4 |
±3.75/3 |
±12.5/30 |
1.0 |
4.0 |
0.35//6.5 |
7x5x0.9 |
|
YXD45M15B |
45.05 |
4 |
±7.50/3 |
±25.0/35 |
1.0 |
3.0 |
0.65//3.0 |
7x5x0.9 |
|
YXD45M20B |
45.00 |
4 |
±10.00/3 |
±25.0/25 |
1.0 |
3.0 |
0.5//2.5 |
7x5x0.9 |
|
YXD45M30B |
45.00 |
4 |
±15.00/3 |
±50.0/30 |
1.0 |
3.0 |
1.2/0.7 |
7x5x0.9 |
|
YXD45M15B |
45.10 |
4 |
±7.50/3 |
±25.0/35 |
1.5 |
3.0 |
0.65//2.2 |
7x5x0.9 |
|
YXD47M15B |
47.25 |
4 |
±7.50/3 |
±27.0/35 |
1.0 |
3.0 |
0.8//1.7 |
7x5x0.9 |
|
YXD73M13B |
73.350（3） |
4 |
±6.50/3 |
±20.0/30 |
1.0 |
4.0 |
1.7//-0.6 |
7x5x0.9 |
